Businesses generally automate processes to add economic value. A classic example of process automation is using technology to increase production quantities while keeping operating costs stable. In contrast, manual production requires significantly higher costs to yield comparable quantities – that is, if production processes can even be performed manually. A standard planning approach is often used to plan this kind of production system. If the motivation for automating processes is not financial, but rather due to factors like infrastructure limitations or environmental conditions, planning becomes more challenging. In line with product and process requirements, businesses need to select reliable technology while also guaranteeing cost-optimal operations.
Below, we’ve compiled a few examples where manual processes are complicated or completely ruled out. The examples cover a wide range of industries, including automotive, grocery production and retail, as well as e-commerce, high-tech and industrial manufacturing.
Let's get in touch
A classic example – heavy, bulky parts
The handling of heavy parts or components is an example where manual processes reach their limits, regardless of industry. Often, heavy parts are also too large for ergonomic handling by humans. Examples of such processes include dashboard, seat or wheel assembly in automotive production and picking and provision of large components in mechanical and industrial manufacturing.

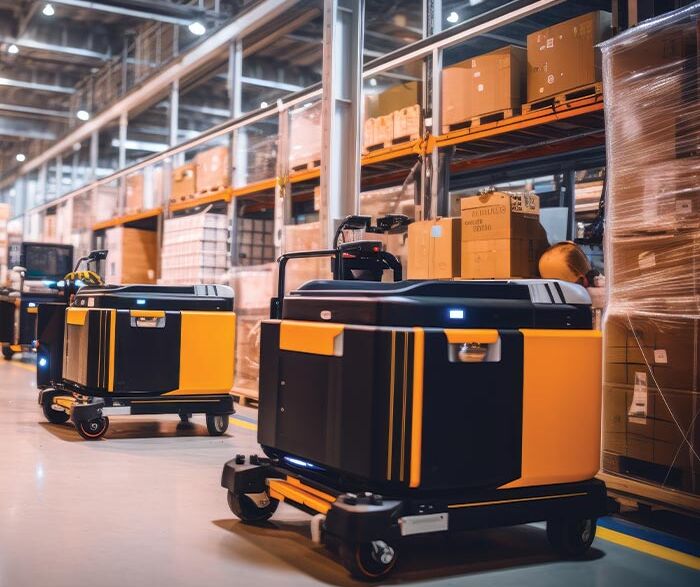

Full automation is not a common approach. Instead, many businesses implement manually operated lifting technology. We’ve seen, however, that some businesses are already looking for ways to increase the degree of automation for such processes. For example, automated guided vehicles (AGVs) or industrial robots with a high load capacity are used. These are sometimes even enhanced with sensors so they can recognize their surroundings and the object to be moved. These solutions also improve workplace ergonomics, which can reduce the high costs associated with employee absences due to physical strain. By improving or simplifying processes and reducing employee absences with automation, businesses can recover implementation costs and ensure savings in the long term.
Theft protection thanks to automation
Handling and storing articles with high value requires special security measures. For instance, products like injectors for truck motors, brand-name items, jewelry, valuable metals, money or the raw materials used to make these items often require extra protection from theft or misuse. The same may be true of parts for tools and machines for essential functions, such as military use.
Even if manual processes are simple to implement in these cases, businesses often choose automation technology. This way, unauthorized access to the relevant areas of the plant is prohibited for safety reasons, creating a first hurdle for potential theft. For greater protection, security and surveillance technology can be implemented as needed. In addition to physical processing, warehouse management should also be made secure during the process design phase, for instance to prevent misuse and theft of valuable items during booking processes.
Businesses can usually cover the additional costs for processes with high security requirements by increasing the price of the end products, as competitors also face these costs. Such products are generally sold at a high margin, which also reduces price pressure.

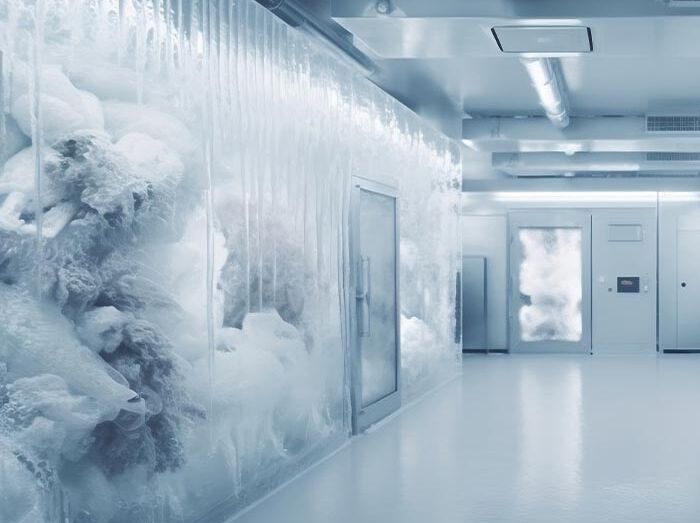

Extreme temperatures put the human body under strain
Large, heavy parts can quickly push the human body to its limits. Extreme temperatures can do the same and lead to a high number of sick days for employees. We see this often when working with frozen goods, whether in production, packaging, warehousing or picking processes. No one can spend much time in a warehouse with temperatures of -25°C or -13°F without appropriate protective clothing. And frequent entry to store or retrieve goods increases energy costs, as warm air comes in each time a door is opened.
That means: the smaller the door, the lower the energy costs. This principle is increasingly prompting businesses to fully automate their warehouses for frozen goods and operate them as dark warehouses. Materials flow in and out of the warehouse via optimized airlocks to minimize the transfer of warm air. People only need to enter the warehouse for maintenance or to address malfunctions. The high turnover of goods and the consistency of load carriers also make warehouse automation a smart investment in this case. The technology requirements to implement such climatic conditions in an energy-efficient and automated manner are very specific.
Online retail is booming – and so is the packaging industry
"Remember Covid, when all the stores were closed? Thank goodness we had and still have Amazon and more to get us through it all." You may have found yourself thinking something like this. During the Covid-19 pandemic, manufacturers of packaging, and especially cardboard packaging, needed to nearly double their output to meet the demand of large online retailers. And the boom has continued even after the pandemic.
How do these businesses adjust production to meet such an increase in demand? Just as in the above examples: by adapting quickly with automation. For example, many manufacturers of cardboard packaging switched their production and logistics from partial to full automation within a very short time – in some cases, under 10 months. The line feeding of the long, large machines in factories was operated by manual forklifts and manual processes. But with machines doubling their output, workers could no longer move quickly enough to keep up. Interlinked conveyor technology provides a solution and reduces process times by as much as 30% with line feeding. By linking the automatic high-bay warehouse directly to the machines using driverless transportation systems, the cut-to-size and palletized cardboard boxes are stored ready for distribution. This further improves efficiency and increases delivery cycles to the customer. In this example, logistics sets the pace for the factory, enabling a quick response to increasing customer requirements.

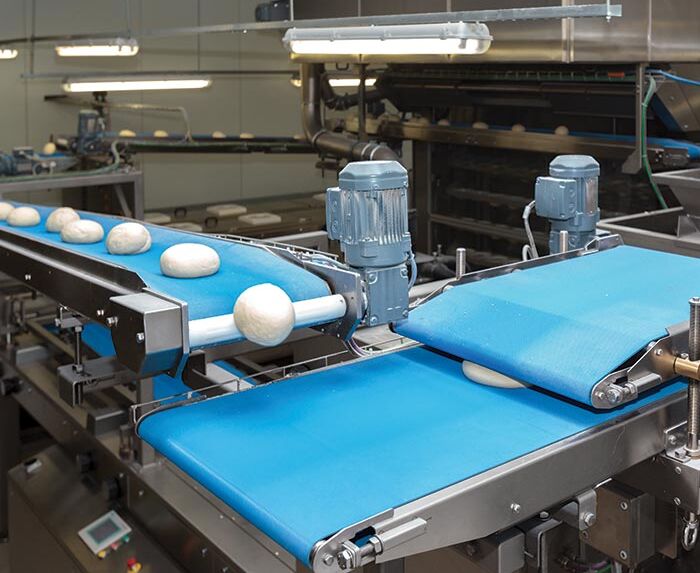

Logistics for perishable goods has to be fast
Behind every sandwich, croissant or muffin in train stations, airports or at newspaper stands, there’s a lot of logistics know-how. Most of these small shops have little or no space for an oven or kitchen. They use the available space to display their products. To ensure there are enough products available all day, products are picked and baked in external warehouses, then very quickly delivered. The fully automated baked goods warehouse is set up as a closed cycle around a picking zone to minimize transportation distances. Goods are delivered to the center, creating a star shape.
Orders are sent electronically to the warehouse technology, which sequences and executes the retrieval orders. The required baked goods are delivered to this picking zone, where they are then picked by piece and transported directly to the shipping area, all via conveyor systems. After picking, opened pallets are returned directly to storage. In this example, automation enables greater responsiveness and offers the answer to fast and varying demand for perishable foods.
High throughput with maximum precision
In electric manufacturing, electronic components are placed on circuit boards with impressive speed and precision. Hourly throughputs of more than 10,000 components, some less than one millimeter long, are not unusual. In food production, quality control is slower, but still incredibly fast for the human eye. Delta and SCARA robots sort food products such as chocolates into their packaging quickly, yet with the care required. They also use cameras to sort out faulty products in quality inspection processes. In both examples, speed, accuracy and hygiene requirements are high within the working environment.
With such large throughputs, businesses would need significantly more workers than robotic systems to maintain the necessary pace. When done by hand, accuracy and precision can only be maintained for a short time before reject rates increase significantly. As an additional advantage, robots don’t bring foreign particles into production areas. Contamination by dirt or germs can be avoided with appropriate technology. As mass production is generally well suited for automation, business cases demonstrate the benefits of automated processes.

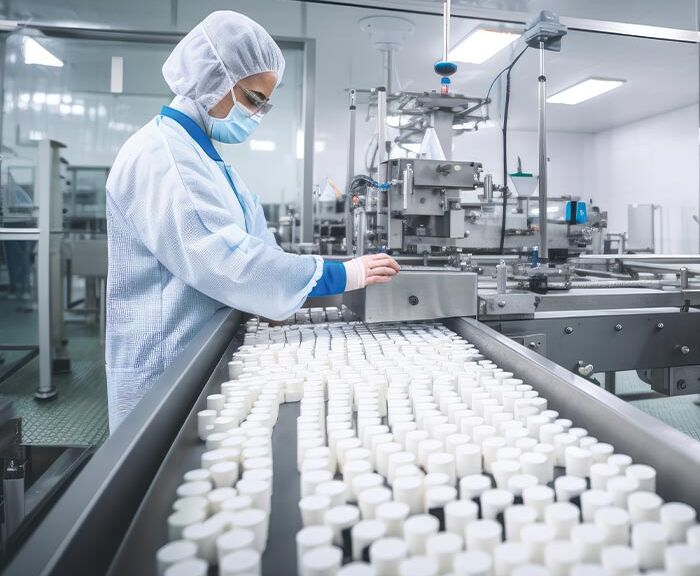

A hygienic alternative
In addition to keeping work stations in clean rooms hygienic, the significantly larger challenge is preventing contaminants from entering these environments in the first place. While feeding materials, the wheels of conveyor systems or carts pick up particles from the ground and carry them into clean areas.
Because gravity causes particles to gather on the ground, this phenomenon can be reduced but not completely avoided by reloading within airlock areas, even with upstream clean zones and special dirt traps at entrances. Automated conveyor technology provides an alternative solution: goods are loaded onto a vehicle with wear-resistant tires in an upstream clean zone and transported to the place of use via suspended rails. Thanks to the rail system, only a defined area needs to be kept clean, which significantly reduces the movement of contaminants. It also reduces multiple handling in airlock areas, which in turn has a positive effect on process costs.
Looking to the future
As demonstrated with these projects, processes in many industries stand to benefit from automating material flows or handling. In our current projects and conversations with customers, we see a trend toward digitized and automated solutions. Rising wages, the lack of skilled workers – particularly in view of demographic trends – and the replacement of outdated equipment frequently convince even hesitant businesses to invest in process automation.
At the same time, it’s important to note that automation has benefits beyond the financial ones. For instance, space, building or environmental requirements can limit manual processes. Lean processes, scalable automation and comprehensive digitization of production logistics will be key factors for remaining competitive in the future.
This article was originally published in German under the title “Limits manueller Prozesse” in the “Irgendwas mit Logistik” report number 8 in October 2023 on page 17.
